For over three decades in the heart of China’s manufacturing powerhouse – Guangdong Province – we at Guangdong Goodich Hardware Co., Ltd. have witnessed a quiet revolution. It’s not in the flashy appliances or the trending finishes, but hidden deep within the cabinets themselves: the humble drawer slides. Often overlooked, these unassuming components are the silent conductors of daily life, transforming chaotic storage into effortless access. Forget the days of sticky, screeching drawers jamming halfway. Today’s premium drawer slides are feats of engineering, and as a dedicated manufacturer immersed in their intricacies, we’re here to unveil why they are the true cornerstone of functional, lasting furniture.

Beyond the Roller: The Anatomy of Silent Performance

While many associate drawer slides simply with rolling, the reality is far more complex. Think of them as miniature suspension systems, bearing weight, ensuring alignment, absorbing shock, and enabling smooth motion thousands of times over. At Goodich, we dissect this performance into critical pillars:

1. The Core Mechanism: Ball Bearings Reign Supreme
   • Roller vs. Ball Bearing: While basic roller mechanisms exist (often found in older or economy bottom-mount slides), the undisputed champion for durability and smooth operation is the ball bearing system. Imagine tiny, hardened steel spheres circulating within precision-machined races. This design minimizes friction points, distributes load evenly, and significantly outlasts simple rollers.
   • Goodich Focus: Our G-Slide™ series utilizes triple-row, stainless-steel ball bearings housed in hardened steel races, rigorously tested for over 100,000 cycles (ANS/BIFMA X5.5 standards) with minimal force degradation (<15%). Independent lab results (available upon request) show our bearings maintain <0.5dB noise increase even under 90% of max dynamic load after 50,000 cycles.
2. Load Capacity: It’s Not Just Static, It’s Dynamic
   • Understanding the Labels: You’ll see ratings like “100lb capacity.” Crucially, this usually refers to dynamic load – the weight the slide can handle while being opened and closed repeatedly. Static load (holding weight without movement) is often significantly higher (e.g., a 100lb dynamic slide might hold 150-200lb static).
   • The Goodich Formula: We don’t just slap on a number. Our load ratings (ranging from 45kg/100lb standard duty to 250kg/550lb heavy-duty) are derived from rigorous testing per ANSI/KCMA A161.1 and our own accelerated lifecycle protocols. We factor in:
     • Slide Length: An 18″ slide holds more than a 24″ slide of the same model. (See Table 1)
     • Load Distribution: Central weight is ideal; uneven loading (common in tool Drawer Slides) reduces effective capacity.
     • Extension Type: Full-extension and over-travel slides often have slightly lower capacities than equivalent partial-extension slides due to the mechanics involved.
   • Data Point: Our G-Slide™ Pro 18″ Full-Extension Side-Mount consistently handles 110lb dynamic load over 80,000 cycles (exceeding ANSI/KCMA minimums by 40%) in controlled tests simulating real-world kitchen use (variable load distribution, temperature/humidity fluctuations).

Table 1: Goodich G-Slide™ Standard Side-Mount Load Capacity vs. Length (Dynamic Load – kg/lb)

3. Mounting Mastery: Choosing the Right Foundation
   The way drawer slides integrate with the cabinet and drawer defines their visibility, capacity, and space efficiency. Let’s move beyond the basics:

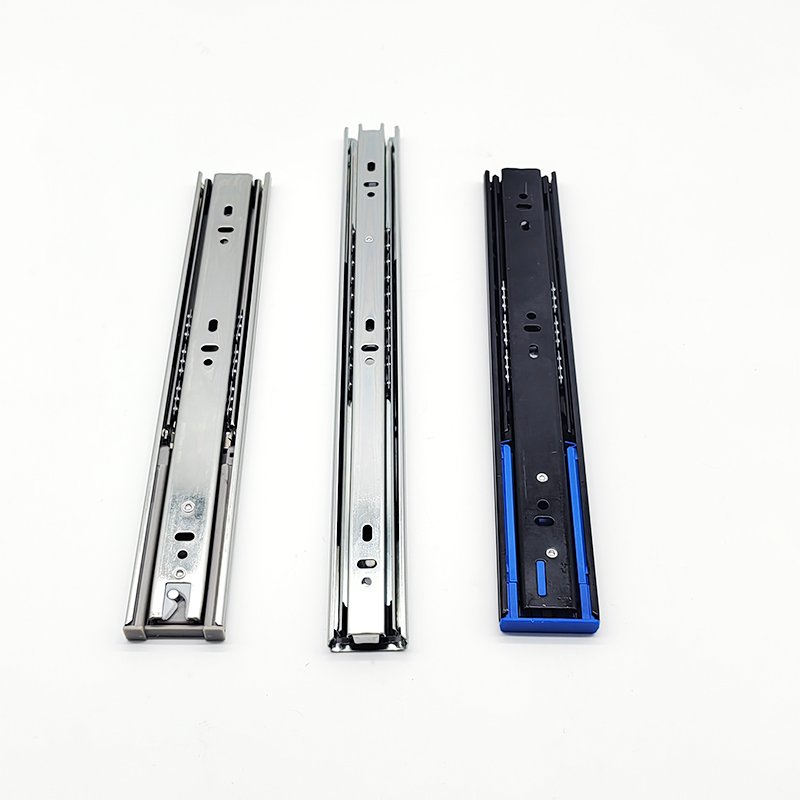

   • Side-Mount (Ball Bearing): The workhorse. Offers excellent value-to-performance ratio. Requires ~1/2″ side clearance per slide. Goodich Advantage: Our patented “Zero-Sag” side-mount design incorporates a reinforced central spine, reducing lateral deflection under load by up to 35% compared to standard designs, crucial for wide Drawer Slides holding heavy dishware or tools.
   • Undermount: The invisible luxury. Mounted beneath the drawer, offering clean aesthetics and maximizing usable Drawer Slides width. Requires precise installation and specific drawer base construction. Goodich Advantage: Our G-Slide™ Undermount Pro features a self-centering locking mechanism during installation and a unique polymer dampener integrated into the carriage, achieving near-silent soft-close even at 90% of max load.
   • Bottom-Mount (Often Roller): Economical, common in ready-to-assemble (RTA) furniture. Simpler installation but generally lower load capacity and shorter lifespan than ball-bearing options. Goodich Note: While we specialize in premium ball-bearing systems, we offer robust bottom-mount rollers for budget-conscious RTA lines, using wear-resistant polymer wheels instead of basic plastic.
   • Center-Mount: Simpler installation for lighter Drawer Slides. Rarely used today for primary storage due to capacity and stability limitations. Goodich Perspective: Primarily useful for very narrow, light-duty applications like small office or vanity drawers.
   • Groove Mount (17mm/27mm System): Popular in European cabinetry. Requires specialized drawer side milling. Offers a clean look but typically lower capacity. Goodich Offering: We provide high-quality 17mm groove mount drawer slides specifically for the European export market, focusing on smoothness and longevity within their typical load parameters.

3. Extension & Motion: Access is Everything
   • Partial Extension (3/4): An outdated compromise. Leaves ~25% of the drawer depth inaccessible. Avoid unless absolutely space-constrained.
   • Full Extension: The modern standard. Allows the Drawer Slides box to be pulled fully clear of the cabinet, revealing 100% of the contents. Essential for deep storage. Goodich Standard: Over 95% of our slide models are full-extension as standard.
   • Overtravel: The premium upgrade. Extends the drawer slides beyond full extension, typically by 1-2 inches. A game-changer under countertop overhangs or for maximized access in tight spaces. Goodich Innovation: Our overtravel mechanism uses a dual-stage ball bearing system to provide extra reach without compromising stability or weight rating, a significant engineering challenge we’ve mastered.
   • Motion Features:
     • Self-Close: A gentle tug initiates automatic closing. Convenient.
     • Soft-Close: The pinnacle. Hydraulic or polymer dampers silently decelerate the drawer in the last few inches, preventing slams. Goodich Data: Our integrated dampening systems operate consistently across temperatures from -5°C to 50°C, with closing force variations <10%, ensuring reliable performance globally.
     • Push-to-Open: Touch-latch mechanisms eliminate handles for a sleek, minimalist look. Requires precise alignment.

Why Guangdong Goodich? The Manufacturer’s Edge in Every Slide

Choosing drawer slides isn’t just about specs; it’s about trusting the source. Based in Guangdong, the epicenter of global hardware manufacturing, Goodich leverages a unique ecosystem of expertise, materials, and relentless innovation.

• Material Science Matters: It’s not just “steel.” We specify:
  • Cold-Rolled Steel (CRS): For slides requiring high strength and rigidity (side mounts, heavy-duty undermounts). We use grades like SPCC with precise thickness tolerances (±0.05mm).
  • Stainless Steel (SUS304): For critical components like ball bearings and in applications demanding high corrosion resistance (coastal areas, laboratories, medical). Our SUS304 bearings undergo passivation for enhanced surface hardness.
  • Engineering Polymers: For dampers, wheels (in bottom-mount), and low-friction components. We don’t use generic plastics; we employ glass-reinforced nylon (PA66-GF25) and proprietary acetal copolymer blends for superior wear resistance and dimensional stability. Our polymer lab continuously tests formulations against humidity (up to 95% RH) and UV exposure.
• Precision Manufacturing: Tolerance is Not a Compromise: The difference between a smooth slide and a binding one can be fractions of a millimeter. Our facilities utilize:
  • CNC stamping presses with multi-stage progressive dies for consistent, burr-free parts.
  • Robotic welding for perfect, repeatable joints on heavy-duty slides.
  • Automated assembly lines with optical inspection systems ensuring every ball bearing is perfectly seated, every rivet correctly set.
  • Dedicated gauge calibration labs ensuring micrometers and force testers are accurate to sub-micron levels.
• Proprietary Technologies – The Goodich Difference:
  • NanoShield™ Coating: A proprietary, multi-layer electroplating process (Zn-Ni alloy base + trivalent chromium passivation + polymer topcoat) achieving 720+ hours neutral salt spray test (NSS) resistance – far exceeding standard zinc plating (96-120hrs). This is critical for longevity, especially in humid climates like Southeast Asia or coastal regions. (Test reports: SGS-CSTC Standards Technical Services Co., Ltd.)
  • SilentGlide™ Polymer Inserts: Strategically placed, self-lubricating polymer pads within the slide channel absorb vibration and micro-shocks, reducing operational noise by up to 40% compared to standard metal-on-metal designs.

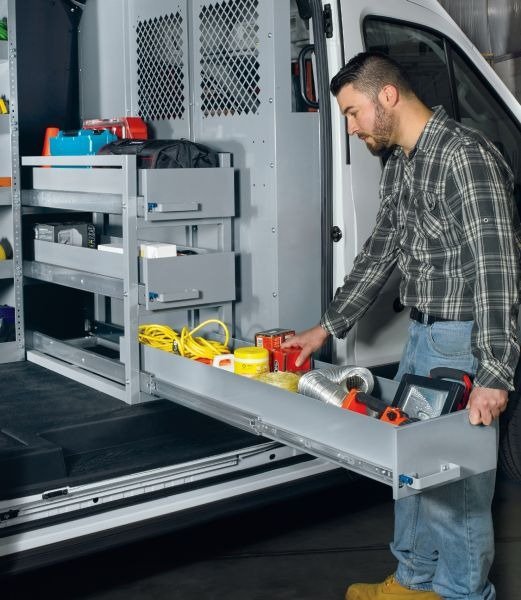

  • LoadMax™ Reinforced Carriage: For our heavy-duty lines (G-Slide™ HD), a unique box-section steel carriage reinforced with internal ribs increases torsional rigidity, preventing the “sag” that plagues lesser slides under extreme loads.
• Beyond the Slide: Understanding Integration: We don’t just make slides; we understand cabinets. Our technical team provides comprehensive CAD drawings, installation jigs (for undermounts), and detailed guides tailored to different cabinet construction types (framed vs. frameless, particle board vs. plywood). We know that a perfect slide installed poorly is a failure.

Navigating the Global Landscape: Drawer Slides for Every Need

Furniture demands vary wildly from Mumbai to Munich to Miami. As a global supplier, Goodich tailors its drawer slides accordingly:

• Asia (India, SE Asia, Japan): High demand for robust slides capable of handling heavy loads (cast iron cookware) and resisting high humidity. Our NanoShield™ coating and heavy-duty G-Slide™ HD series are dominant here. Understanding compact living spaces, we offer reliable solutions for smaller cabinet depths common in urban apartments.
• Europe (Germany, Italy, Spain, Portugal): Emphasis on precision engineering, silent operation (soft-close is near-ubiquitous), clean aesthetics (undermount, push-to-open), and adherence to strict EU regulations (REACH, RoHS). Our undermount and groove-mount slides, featuring SilentGlide™ and premium dampers, are engineered for this discerning market.
• Americas (USA, Brazil, Mexico): A diverse market. High-end kitchens demand premium undermount soft-close, while workshop and garage storage require extreme heavy-duty side-mounts. Value lines are also significant. Goodich offers the full spectrum – from our feature-rich Pro series to reliable, high-value standard lines – all meeting or exceeding ANSI standards. Understanding the prevalence of face-frame cabinets in the US, our side-mounts include universal mounting brackets.

The Goodich Commitment: More Than Hardware, It’s Partnership

Founded on the principles of precision and reliability, Guangdong Goodich Hardware Co., Ltd. is your dedicated partner in creating furniture that lasts and functions flawlessly. We offer:

• OEM/ODM Expertise: Tailoring drawer slide specifications (length, load, finish, features), packaging (bulk, retail-ready), and branding (logo printing, custom boxes) to your exact needs.
• Rigorous Quality Control: From raw material certification (Mill Test Reports) to in-process inspections (SPC – Statistical Process Control) and 100% final functional testing before shipment. We operate under ISO 9001:2015 and ISO 14001 certified systems.
• Technical Support: Our engineering team provides application support, troubleshooting guides, and custom solution development.
• Global Logistics: Efficient FOB, CFR, CIF, or EXW terms from our Guangdong facilities to major global ports.
• Transparency & Trust: Visit our modern facilities in Guangdong! See the precision, the technology, and the commitment firsthand. (Virtual tours available upon request).

The Silent Investment in Satisfaction

Choosing the right drawer slides is an investment far beyond the cost per unit. It’s an investment in the daily satisfaction of users, the longevity of furniture, and the reputation of your brand. In a world of shortcuts, the precision engineering, advanced materials, and rigorous testing embedded in every Goodich slide represent a commitment to excellence forged over decades in Guangdong’s competitive crucible.

Don’t let the foundation of your storage become its weakest link. Partner with Guangdong Goodich Hardware Co., Ltd. Let us provide the invisible excellence – the smooth, silent, reliable motion – that transforms ordinary furniture into an extraordinary experience, one perfectly gliding Drawer Slides at a time. Because in the symphony of a well-run home or workspace, the drawer slides are the silent instruments playing the melody of effortless function. Contact us today to discuss how our precision drawer slide solutions can elevate your next project.
