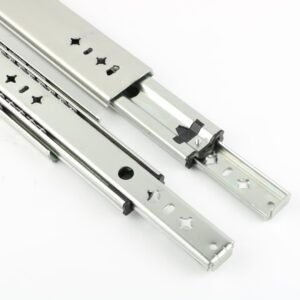

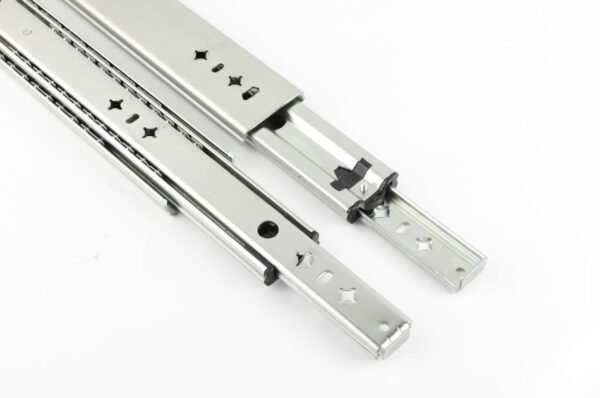

Extension Furniture Sliding Rail drawer guides

Our innovative locking design ensures your drawers can be safely opened or closed with the push of a button. When fully extended or closed, these slides lock into place, giving you peace of mind knowing your ball bearing slide are stable and secure.

These drawer slides are built to exceed expectations! With a sturdy 3-inch width and double-thick construction, they can support an amazing load of up to 485 pounds (220 kg). (Please note that the load capacity may vary for the longer size; see the details for each size.)

Each rail is made of high-density cold-rolled steel plate with a thickness of 2.5 mm, ensuring it passes 100,000 push and pull tests without scratches. These slides are ideal for a variety of applications, including mechanical cabinets, warehouse cabinets, industrial cabinets and van or truck drawers, as well as sliding doors, windows and furniture.

Key Features

1. Heavy Duty and Stronger Load Capacity:
   Depending on size, can carry 291 pounds to 485 pounds. See size specifications for details.
2. Upgraded Ball Bearing Technology:
   Our ball bearings are 7.5mm in diameter, allowing for smooth and gentle gliding even when fully loaded.
3. Safe Locking Mechanism:
   Open or close your drawer with the push of a button. The drawer locks securely when fully extended or closed, ensuring safety and stability.
4. Tri-Fold Full Extension:
   Enjoy full access to your drawers. These slides fully extend, making them ideal for a variety of applications, including cabinets and furniture.

Specifications

• Material: Cold Rolled Steel
• Mounting Style: Side Mount
• Width: 3″
• Minimum Cabinet Depth: Drawer Length + 0.12″ (3mm)
• Slide Style: 3-Fold Full Extension, Side Mount, Heavy Duty, Locking
• Plate Thickness: Outer Slide: 0.1″ (2.5mm), Middle Slide: 0.1″ (2.5mm), Inner Slide: 0.1″ (2.5mm)

Additional Features

1. Telescopic Precision Full Extension Slides
2. Soft-Clamped Entry and Exit Stops
3. Chromized Steel for Extra Durability
4. Single Non-Removable Unit for Smooth Action and High Stability
5. Sound-Absorbing Plastic Ball Spacers with Hardened Steel Balls

Note: Make sure the slides are securely fastened to the cabinet using screw fasteners in each available hole for optimal performance.

Why Choose Our Drawer Slides?

When choosing drawer slides for your cabinets, side-mount drawer slides and ball bearing slides are your best choice for durability and functionality. Each linear slide is located on either side of the drawer for easy movement when opening and closing. Our premium heavy-duty ball bearing drawer slides support up to 250 pounds and, unlike wooden or plastic alternatives, are self-lubricating to prevent sticking.

Keep in mind that while standard side-mount slides only require ½ inch of space, our heavy-duty versions require ¾ inch of space to ensure proper installation.

For more information:

Contact Guangdong Goodich Hardware Co., Ltd. at info@goodich-hardware.com or +86-15618525178.

If you have any questions or need further assistance, please feel free to contact us!
