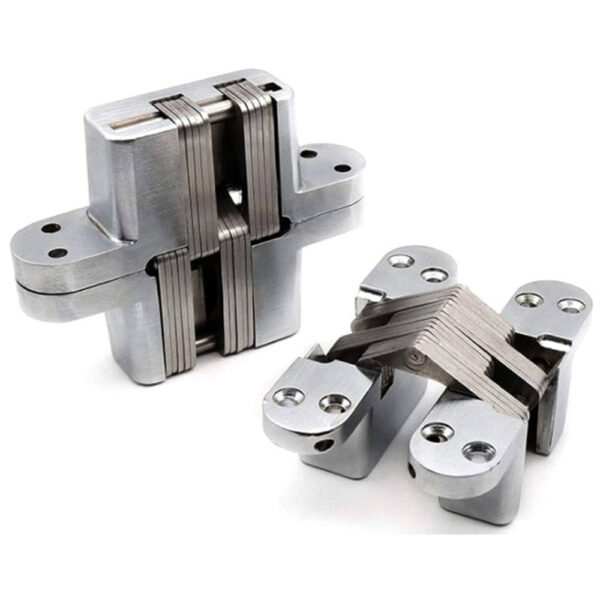

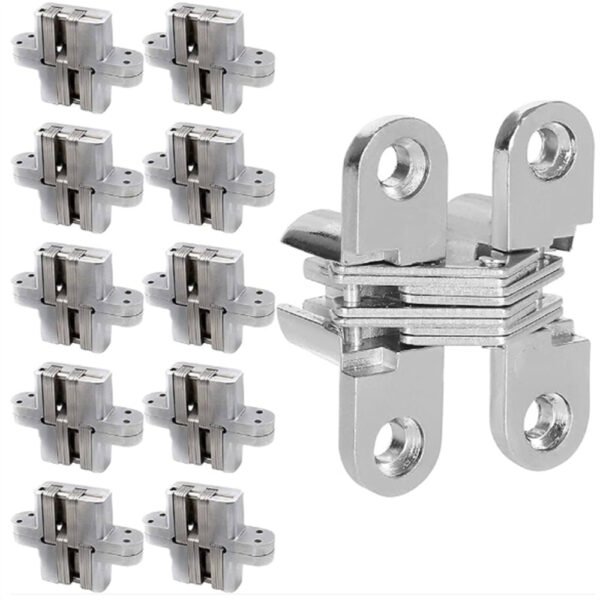

Ceam 3D Invisible Concealed Door Hinge

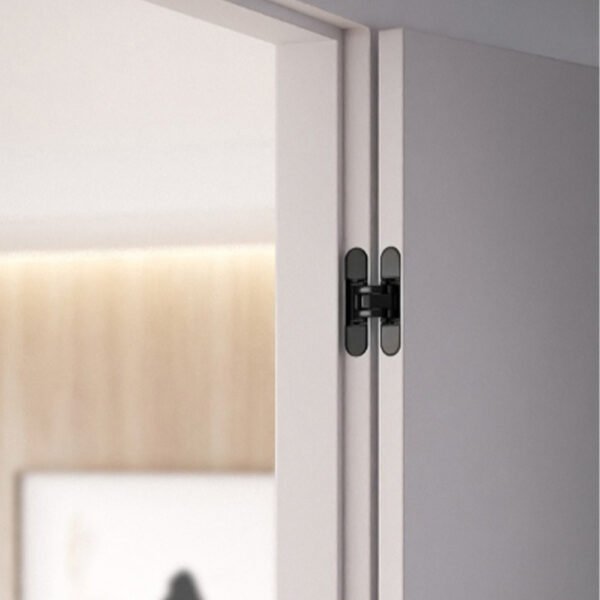

The Ceam 3D Invisible Concealed Door Hinge is your go-to solution for achieving a sleek and unobtrusive look in residential homes, offices, hotels, and a variety of architectural projects. Designed to be recessed into both the door and the frame, this innovative hinge remains completely hidden when the door is closed, creating a seamless, streamlined appearance without any visible hardware.

Key Features

• Impressive Load Capacity: Supports up to 150 kg for doors up to 900 mm wide, depending on your door specifications (check our weight chart for details).
• Easy Installation: Comes with a router template to make installation straightforward and ensure perfect slot symmetry.
• Proudly Made in Italy: With over 50 years of craftsmanship, you can trust in the quality and reliability of our hinges.
• Quick Release System: Easily remove the door when needed—perfect for maintenance or redecoration.
• 3D Adjusting System (S.T.A.R.S.): Adjust in three dimensions for a flawless fit, making alignment a breeze.
• Versatile Applications: Ideal for both internal and sheltered external locations, suitable for residential, commercial, and industrial use.

Invisible Concealed Door Hinge Specifications

• Height: 160 mm
• Width: 32 mm
• Depth: 29 mm
• Material: Durable die-cast construction
• Working Aperture: 180 degrees
• Minimum Door Thickness: 38 mm
• 3D Adjustable: Yes
• Compatible with: Wood, Aluminum, and Steel doors

Load Capacity Breakdown

• 2 Hinges: Supports up to 85 kg for 900 mm wide doors
• 3 Hinges: Supports up to 120 kg for 900 mm wide doors
• 3 Hinges (Asymmetrical): Supports up to 135 kg for 900 mm wide doors
• 4 Hinges: Supports up to 150 kg for 900 mm wide doors

Available Finishes

• Black
• Bronze
• Nickel
• Polished Brass
• Silver

Additional Features

• No Visible Barrel or Pin: Enjoy a clean and modern look without distracting hardware.
• Maintenance-Free Design: Equipped with a bearing mechanism that doesn’t require regular upkeep, so you can enjoy hassle-free operation.
• Aesthetic Hinge Covers: When the door is open, these covers further conceal the fittings, maintaining a sleek appearance.
• Flexible Handing: Suitable for both right- and left-hand doors, offering versatility in installation.
• Heavy Traffic Tested: Built to withstand high usage, making it perfect for busy environments.
• High-Quality Stainless Steel: Ensures durability and resistance to wear and tear.

Conclusion

The Ceam 3D Invisible Concealed Door Hinge is the perfect blend of functionality and style. With its strong load capacity, easy installation, and adjustable features, this hinge is ideal for any space that values both aesthetics and performance. Choose the Ceam 3D hinge to elevate your doors with a flawless finish that stays beautifully discreet!
