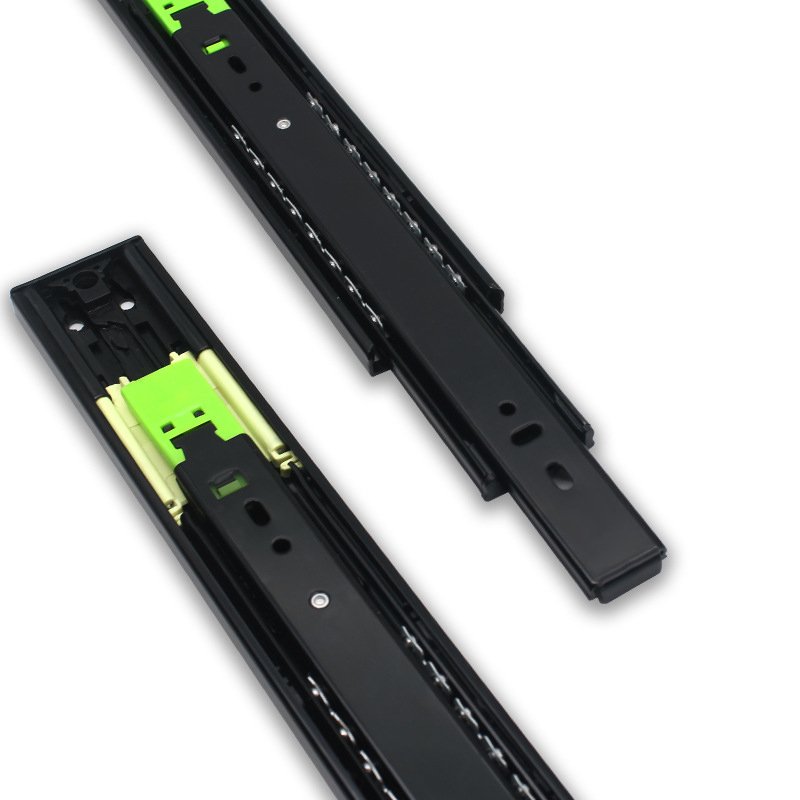

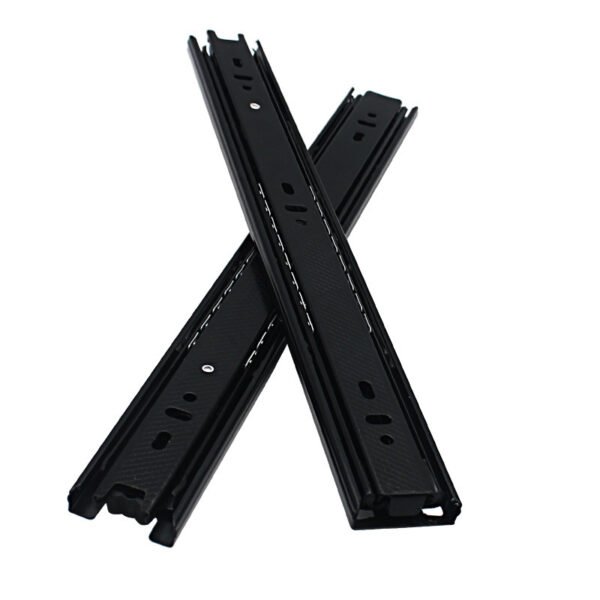

Full-Extension Cabinet kitchen drawer glides Drawer Slides

When choosing drawer slides for your kitchen cabinets, it’s critical to select high-quality slides for smooth operation and durability. Here’s a detailed overview of Goodich’s kitchen drawer glides, two great choices for modern cabinets.

• Thickness Compatibility: Fits drawer side panels up to 16mm (5/8″) thick.
• Drawer Length: Compatible with drawers from 277mm (10.91″) to 302mm (11.89″).
• Cabinet Depth: Approximately 265mm (10.433″), 9-inch slides recommended.
• Soft-Close Mechanism: Utilizes copper hydraulic buffers for quiet closing (30 dB), improving safety by preventing pinching.
• Lifespan: Rated for over 100,000 open/close cycles, with excellent rust resistance.

Full Extension and Locking Mechanism

• 3-Fold Full Extension: Allows full access to drawer contents.
• Adjustable Locking Mechanism: Facilitates easy installation and removal of drawers.

Installation and Notes

Before ordering, please make sure the required size specifications, material, surface processing, quantity, arrival port, etc., contact us for an accurate quote.

Main Features

• Full extension: These hidden soft-closing slides allow for smooth opening and closing.
• Adjustable locking device: Two locking devices allow for left and right adjustment.
• Multiple sizes: Lengths are available in 12 inches, 15 inches, 18 inches, and 21 inches to match various cabinet depths.
• Load capacity: It can bear 100 pounds, which is perfect for kitchen use.
• Craftsmanship: Made in the USA with precision and high-quality materials.

Compatibility

• Drawer thickness: Designed for drawers with a thickness of 1/2 inch to 5/8 inch.
• Recess and drilling requirements: Make sure to select this option when ordering drawer boxes.

Installation

Installation is simple and clear, and detailed guidelines are provided. The slides come with two rear mounting brackets for face frame cabinets.

How to Choose the Right Drawer Slide

• Drawer Depth: Drawer box depth should match slide length (e.g., a 21-inch length slide is suitable for a 21-inch deep drawer box).
• Cabinet Depth: For a typical 24-inch deep cabinet, a 21-inch length slide is recommended.
• Minimum Width: Drawer box width must be at least 7 inches to accommodate the locking mechanism.

Conclusion

High-quality drawer slides, such as the Goodich – Hardware Undermount Soft-Close Slide, enhance the functionality and beauty of your kitchen cabinets. Ensure the correct specifications and compatibility for your project to guarantee smooth and reliable drawer operation. When purchasing, consider the listed dimensions and features to find the best product for your needs.
