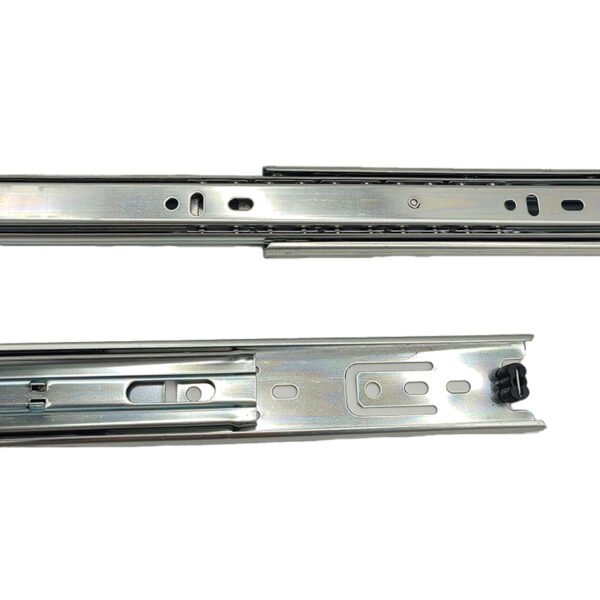

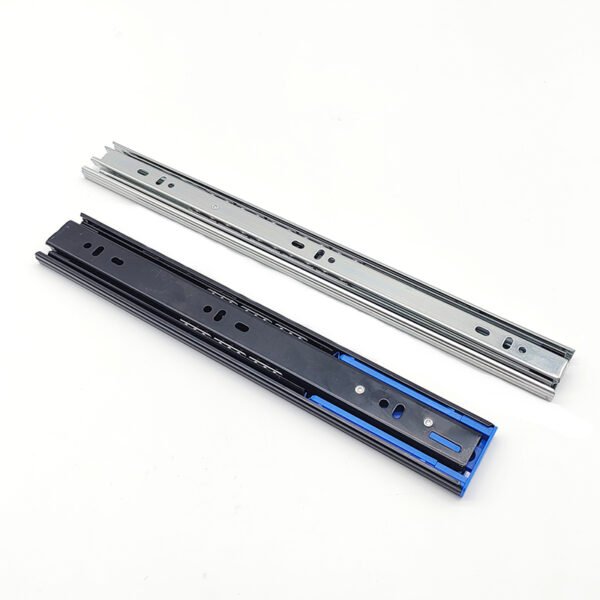

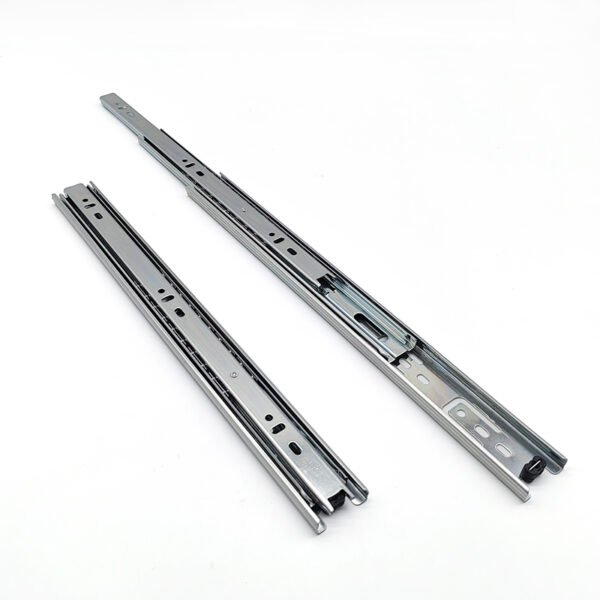

Stainless Steel Locking Drawer Slide

Features of Our Drawer Slides

Key Specifications

• Load Capacity: Each pair can support up to 45 kg, making them perfect for a variety of drawer contents.
• Available Lengths: Our slides come in a range of lengths to suit your needs: 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, and 600mm.
• Material & Finish: Made from high-quality Stainless Steel 304, these slides are durable and resistant to corrosion. Both the ball bearings and the cage are also stainless steel, ensuring long-lasting performance.
• Guided by: Two ball cages for smooth and reliable operation.
• Fitting Options:
  • To the Side Panel: Securely fixed with screws.
  • To the Drawer: Side-mounted with screws for easy installation.

Important Note: Please keep in mind that when fully extended, drawer slides typically support about 30% less weight than their rated capacity. For more details, consult our weight load chart.

Installation Guidelines

Our high-quality drawer slides have been thoroughly tested in Australian conditions. Here are some friendly tips to help you with the installation:

1. Avoid Drilling Through Slide Holes: When marking where to drill, please make sure not to drill through the slide holes. Doing so can create metal filings that may get stuck in the tracks, leading to rough operation and possible failure.
2. Recommended Fasteners: Depending on the material you’re working with, we suggest using stainless steel flat head hex screws with NY-lock nuts or stainless steel rivets for a secure fit.
3. Prevent Rubbing: Ensure that there’s no rubbing between the fixing and the moving slides. This contact can cause the slides to fail prematurely.
4. Mounting Orientation: Our slides are designed for horizontal mounting, paired side by side. Please avoid mounting them vertically or in a flat position, as this will void the warranty.

If you have any questions or need further assistance during the installation process, please don’t hesitate to reach out to our office. We’re here to help you ensure your project goes smoothly! +86-15618525178 or mail us (info@goodich-hardware.com)
