When it comes to choosing drawer slides, there are several important aspects to consider, including mounting location, length of extension, weight rating, slide color, and integrated features. Understanding these factors will help you select the best types of drawer slides for your specific project.
Key Features to Consider
1. Mounting Location
The attachment point of the drawer slide is crucial. Here are the primary mounting styles to choose from:
- Side Mount: Attached to the sides of the drawer, offering a wide range of extensions, weight capacities, and features. They are the most common choice for cabinets and furniture.
- Bottom Mount: These slides are mounted underneath the drawer, known for their simplicity and low cost. They typically allow for 3/4 extension, meaning the last quarter of the drawer remains hidden.
- Undermount: Installed beneath the drawer, these slides provide a clean aesthetic and often include soft-close features, making them a popular choice for modern cabinetry.
- Center Mount: A classic design that mounts in the center of the drawer’s bottom. While they may not operate as smoothly as newer styles, they maintain a vintage charm.
- Top Mount: These slides attach to the top of the drawer space, suitable for applications where side mounting isn’t possible, such as under open desks.
2. Length of Extension
How far the drawer opens is another key consideration:
- Partial Extension: Allows the drawer to open 1/2 to 3/4 of its depth, meaning you won’t see the back of the drawer.
- Full Extension: The drawer opens fully, providing complete access to its contents.
- Overtravel: When the drawer extends beyond the cabinet frame, offering even more accessibility.
3. Weight Rating
Consider the weight the drawer will need to support:
- Standard drawer slides typically handle up to 100 pounds. However, heavy-duty slides can support 250 to 1000 pounds, making them ideal for specialized applications. Be mindful that heavy-duty slides may require additional clearance.
4. Special Features
Certain features can enhance the functionality of your drawer slides:
- Self-Closing: Ensures the drawer closes securely without slamming.
- Soft-Closing: Prevents slamming by gently pulling the drawer closed.
- Locking Mechanisms: Important for larger, heavy-duty slides to keep the drawer open while in use.
- Push-to-Open: Ideal for frameless cabinets, eliminating the need for visible hardware.
5. Color and Finish
For visible slides, the finish matters:
- Side Mount Slides: Commonly available in black and zinc.
- Bottom Mount Slides: Often found in white, cream, and gray.
Types of Drawer Slides
Now that you understand the features, let’s explore the various types of drawer slides available:

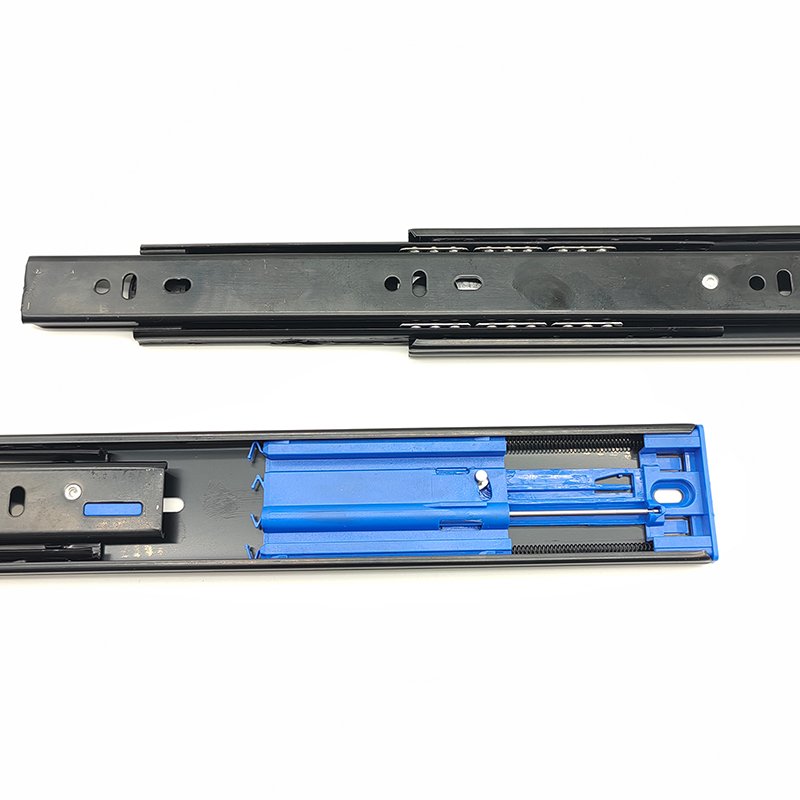

1. Side Mount Drawer Slides
These are the most versatile and widely used. They come in various extensions and weight capacities, including options for self-closing, soft-closing, and heavy-duty applications. Most are designed with a classic ball-bearing mechanism for smooth operation.
2. Bottom Mount Drawer Slides
Known for their straightforward design and ease of installation, bottom mount slides are prevalent in both older and entry-level kitchens. They typically offer self-closing features and are very easy to adjust.
3. Undermount Drawer Slides
Considered one of the best options for modern cabinetry, undermount slides feature soft-close mechanisms and an invisible design, making them aesthetically pleasing. They are perfect for those who value both form and function.
4. Center Mount Drawer Slides
While less common today, center mount slides offer a nostalgic touch to vintage furniture. They operate with a track system that keeps the drawer stable but typically have a lower weight capacity and require specific drawer construction.
5. Heavy Duty Drawer Slides
Designed for demanding applications, these slides can support substantial weights ranging from 250 to 1000 pounds. They are typically made of steel with ball-bearing designs and may include locking mechanisms.
6. Top Mount Drawer Slides
Ideal for situations where side mounting isn’t feasible, top mount slides attach to the underside of shelves or furniture surfaces. They generally have lower weight ratings and offer partial extension.
7. Motorized Drawer Slides
For high-tech solutions, motorized slides like Blum’s Servo-Drive offer electric operation, commonly found in push-to-open units.
Frequently Asked Questions
What is the best drawer slide?
The best drawer slide depends on your specific needs. However, a side mount soft-closing drawer slide is often regarded as the most versatile option for cabinets and furniture.
How do I choose a drawer slide?
To select the right drawer slide, consider the mounting location, extension length, weight capacity, slide color, and desired features. Assess your application and budget to find the best fit.
How much clearance is needed for drawer slides?
Clearance requirements vary by slide type, but most standard side mount and bottom mount slides typically require about 1/2 inch of clearance.
Can drawer slides be longer than the drawer?
Yes, drawer slides can be longer than the drawer itself if they are adequately supported and designed to handle the weight of the drawer and its contents.
Summary
Investing time in researching drawer slide options will pay off in the long run. While your initial needs may seem simple, features like soft-close can significantly enhance user satisfaction over time. By understanding the types of drawer slides and their features, you can make informed decisions that will improve the functionality and aesthetics of your furniture.
